EKF2

CENTRAL CHAIN CONVEYOR
EKF-2

Introduction

The EKF-2 armored conveyor with a central chain of 30x108 covers the top of the range. It is a very robust conveyor. Its transport capacities can reach up to 1,300 t/h and 200m. in length.

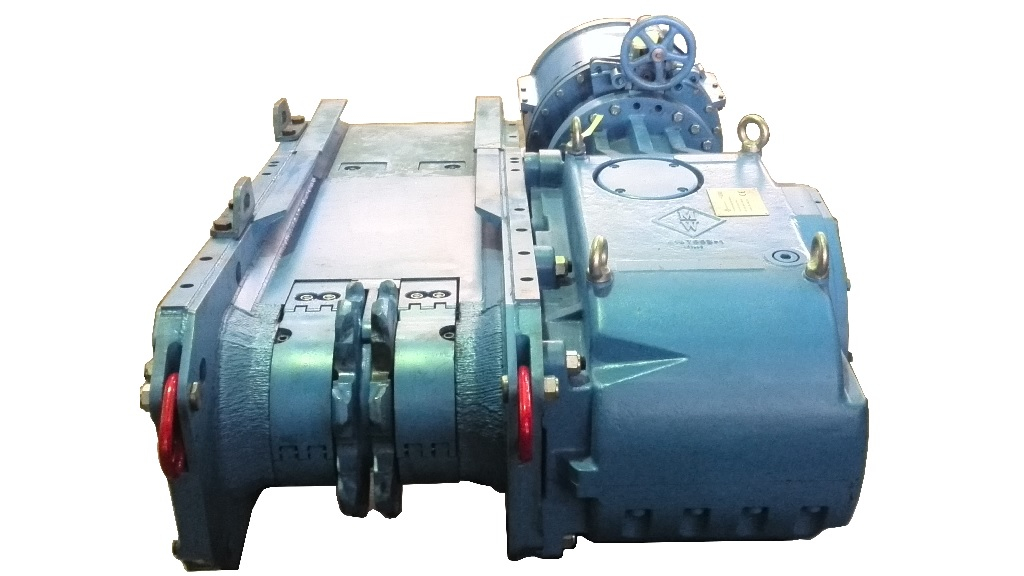

Click image to enlarge



Characteristics



The transport channels are manufactured in E74-V profile.

The special characteristics of these profiles, and consequently of the transport channels, make them particularly adaptable for use as pit conveyors capable of supporting high production cutting  machines (shearers, plugs..)

Given the modular design of this conveyor, it allows the assembly of two drive heads (four drive groups of up to 160 Kw) or one drive head (two drive groups) and a return and tensioning unit.

With different combinations we can have an installed power from 1x90 kW to 4x160 kW.





Maximum length...................................................................................................................... 200m

Capacity   ........................................................................................................................... 1300 t/h

Central Chain Type................................................................................................................ 30x108

Transport speed Z=7; 50Hz.................................................................................................. 0,95m/s

MODELO

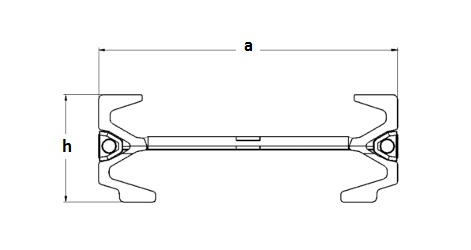

 3 MINERIA TRANSPORTADORES EKF2 25

MODELO CADENA POTENCIA
(por reductor) Kw
a
mm
h
mm
V m/s
EKF-2 30 x 108 90-132-160 632 227 0,95/1,27
