EKF0

CENTRAL CHAIN CONVEYOR
EKF-0

Introduction

The EKF-0 Armored Conveyor is a medium type model used both as a face conveyor or as a delivery conveyor.



The EKF-0 conveyor combines the advantages of the chain arrangement in the neutral transport line, reducing the possibility of blockage. It allows a variable separation between the scraper bars, according to the conditions required by the transport, and its adaptation to the curves is achieved, between 11º and 22º, keeping the scraper bars in a normal position without overloading.

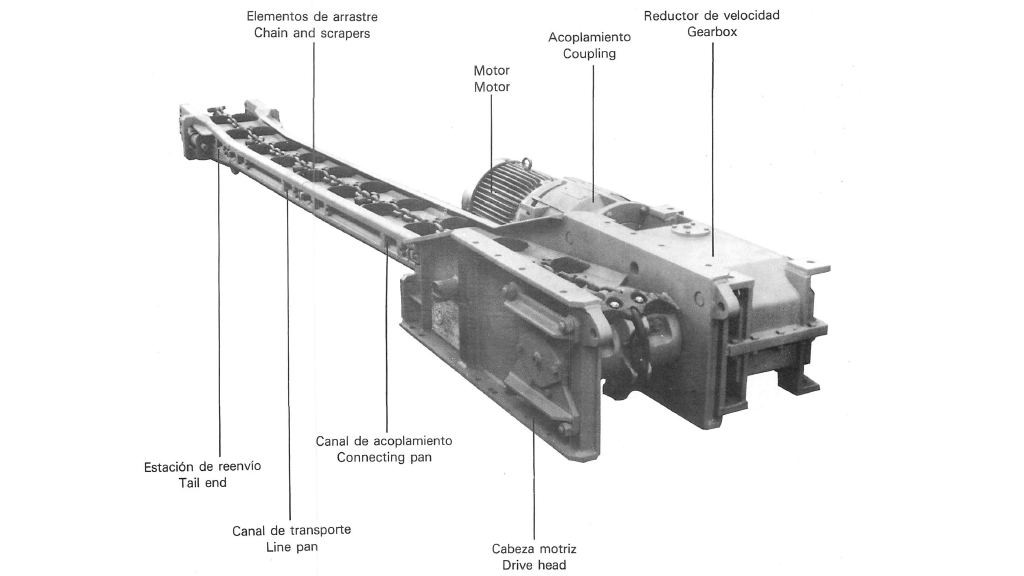

Click image to enlarge



Characteristics



There are 3 versions of this conveyor with the same profile:



MODEL OUTSIDE WIDTH CHAIN CAPACITY
EKF-0/444/18 444 18 x 64 100 T/h
EKF-0/444/22 444 22 x 86 130 T/h
EKF-0/622/22 622 22 x 86 300 T/h



Main characteristics of the conveyor EKF-0/444/18



Maximum length...................................................................................................................... 120m

Capacity   ............................................................................................................................... 100 t/h

Central Chain Type................................................................................................................ 22 x 86

Transport speed Z=7; 50Hz.................................................................................................. 0,63m/s

MODELO



pdfDownload commercial description PDF
