SHIELD EMP 125-360

SHIELD
EMP 125-360

Introducción

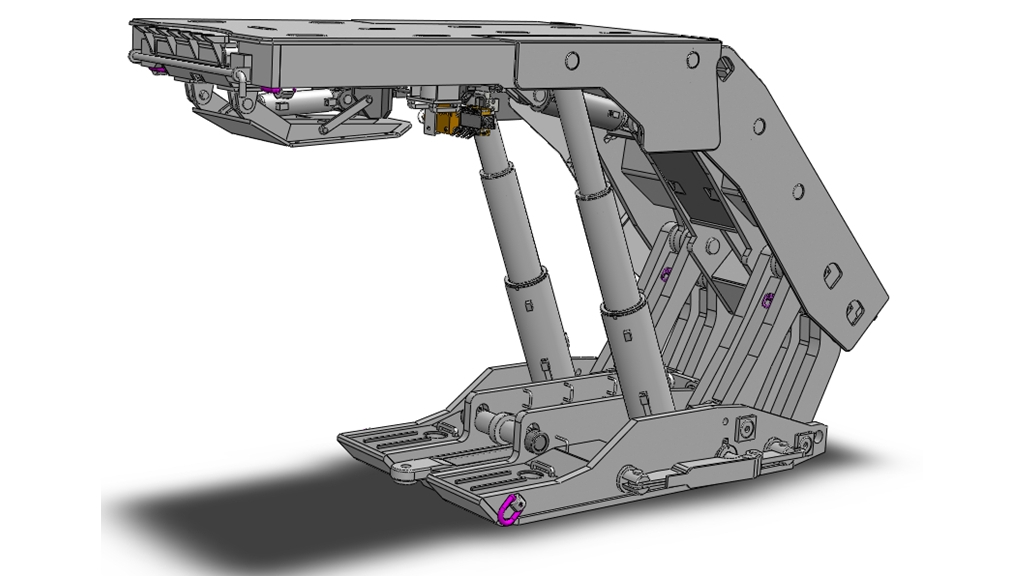

EMP-125-360 Powered Roof Support is designed as a system of support for the mining industry and could be used in inclined slopes of 45º and with coal seams up to 3.6 meters, by the procedure of longwall face method with shearer





Characteristics EMP 150-360



Seam Thickness 1.500 - 3.600 mm
Maximum inclination (longitudinal)  45º
Maximum inclination (transversal) 10º
Setting load at 30 MPa (Open/close) 1.987 - 1.145 KN
Yielding load at 37 MPa (Open/Close):  2.450 - 2.652 KN
Min. Closed Height 1.500 mm
Max. Extended Height 3.600 mm
Advancing stroke 900 mm
Pitch of the supports 1.500 mm



Characteristics EMP 125-285



Seam Thickness 1.250 - 2.850 mm
Maximum inclination (longitudinal)  45º
Maximum inclination (transversal) 10º
Setting load at 30 MPa (Open/close) 1.921 - 1.112 KN
Yielding load at 37 MPa (Open/Close):  2.369 - 2.634 KN
Min. Closed Height 1.250 mm
Max. Extended Height 2.850 mm
Advancing stroke 900 mm
Pitch of the supports 1.500 mm
