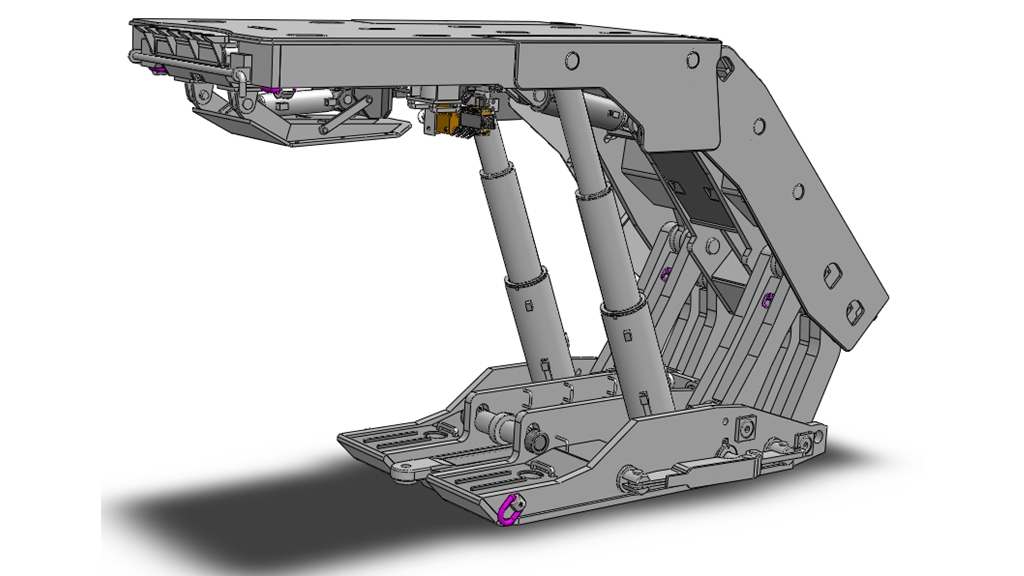

SHIELD EMP 080-240

EMP 080-240


EMP-080-240 Powered Roof Support is designed as a system of support for the mining industry and could be used in inclined slopes of 45º and with coal seams up to 2.4 meters, by the procedure of longwall face method with shearer




Seam Thickness 900 - 2.300 mm
Maximum inclination (longitudinal)  45º
Maximum inclination (transversal) 10º
Setting load at 30 MPa (Open/close) 1.015 - 731 KN
Yielding load at 37 MPa (Open/Close):  2.350 - 902 KN
Min. Closed Height 800 mm
Max. Extended Height 2.400 mm
Advancing stroke 900 mm
Pitch of the supports 1.500 mm
