PNEUMATIC WINCH
CNM04
Introduction

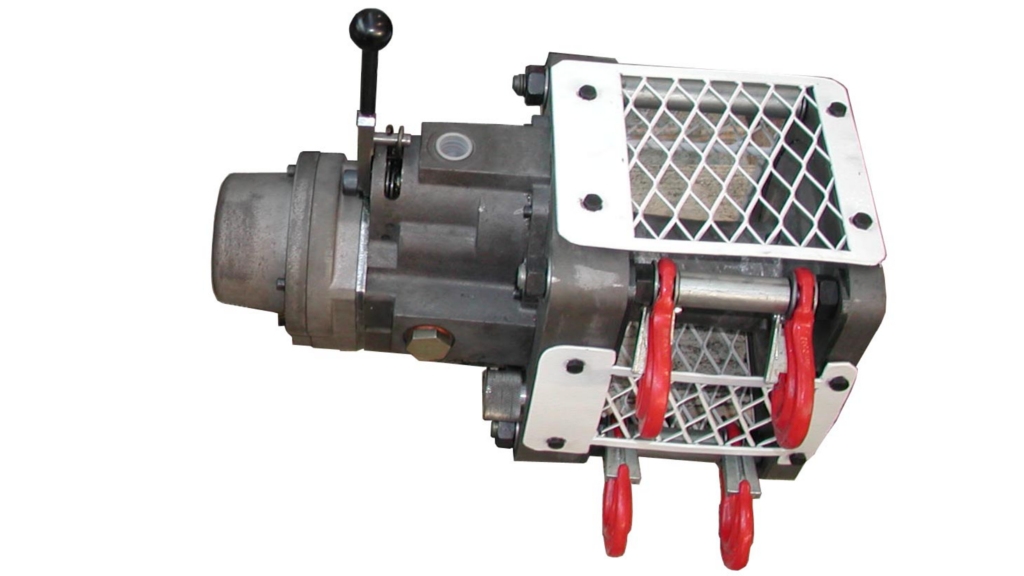

The CNM04 pneumatic winch is designed as a machine for lifting and lowering loads in auxiliary assembly work and various operations, typical of mining work or other environments, by means of pulling wire rope wound on a drum.
The whole set is integrated in a monoblock construction on which there are 4 anchorage and suspension hooks. The construction of the motor rotors and gear wheels is made of hardened, tempered and ground steel, while the frame, drum and motor casing are made of high resistance aluminium alloy so that a unit with a good weight/dimensions/performance ratio is obtained. All the rolling parts are supported on bearings.
Características
-
- Air motor with double direction of drive
- Power the engine................................................................................................................ 4 CV
- Utilization pressure.......................................................................................................... 5bares
- Air Consumption........................................................................................................... 3m3/min
- Maximum tractive forcé................................................................................................... 750 daN
- Maximum speed............................................................................................................ 18m/min
- Sound level....................................................................................................................... 75 dB
- Drum capacity:
With 6 mm diameter cable (Maximum load 480 Kg)......................................... 120 mts
With 8 mm diameter cable.................................................................................... 70 mts
With 10 mm diameter cable................................................................................. .45 mts
- Weight without cable......................................................................................................... .38 Kg
- Three-position control lever: Forward, Stop and Back with spring return to zero position.
