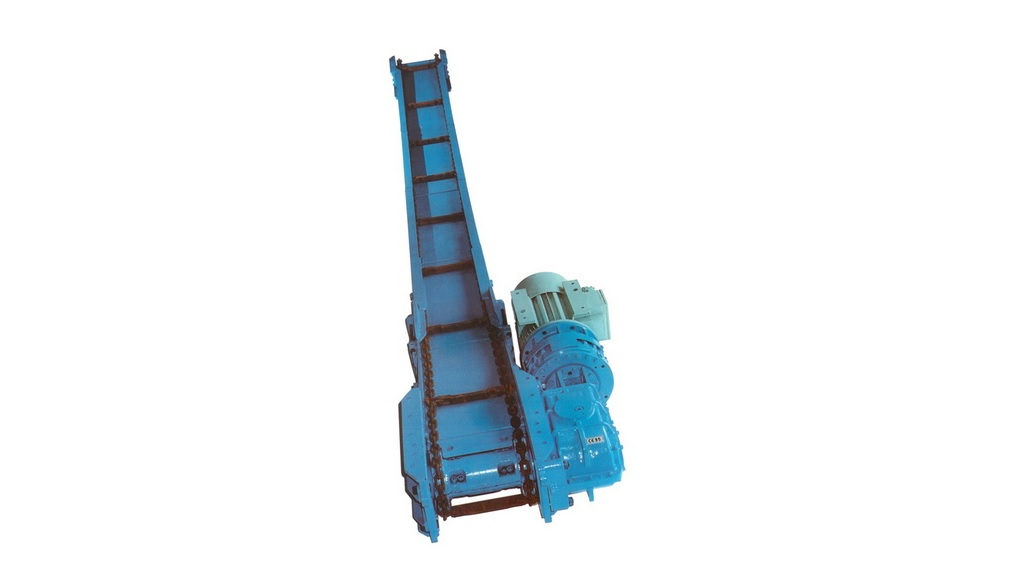

DOUBLE SIDE CHAIN CONVEYOR
MIv-500

Introduction

The MIv-500 conveyor is specially designed for mechanized layer operations with plug or shearer.

The profiles, of great robustness, are with ends to the manganese and this allows to support the weight and the script of the machines of starting.

They are also used as transport equipment with abrasive materials.

Its most widespread application is in the exploitation of pits up to 200 m long with a maximum capacity of 350 t/h. It can be installed with one or two drive heads with a maximum power per head of 110 kW, using 45, 55 or 90 kW engines.

Characteristics

Maximum length .................................................................................................................... 200m

Capacity  .................................................................................................................................. 350t/h

Maximun Installed Power .........................................................................   ..................... 2x110  kW

Chain ........................................................................................................................................ 18 x 64
